Bookletmakers

Booklet makers, SquareFold trimmers and high-capacity feeders from Morgana and Plockmatic — near-line and inline with Fujifilm presses.

Learn more Request brochure

MorganaFeeders

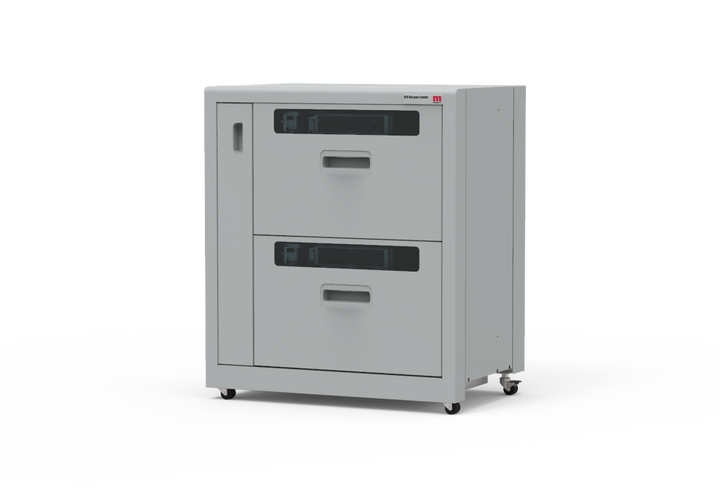

Plockmatic VFX Feeder

High capacity vacuum feeding for booklet makersThe Plockmatic VFX feeder pairs with the BM4000, BM5000 and PowerSquare series, feeding a wide range of paper types and weights at up to 15,000 sheets per hour with minimal operator adjustment.Key considerations Capacity: 5,400 sheets across two vacuum trays Tray switching: Automatic — load empty trays during a run for long unattended production Detection: Adaptive Fa...

Capacity: 5,400 sheets across two vacuum trays
Tray switching: Automatic — load empty trays during a run for long unattended production
Detection: Adaptive Fan Control and advanced double-sheet detection (infrared + ultrasonic)

Learn more Request brochure

MorganaBooklet Makers

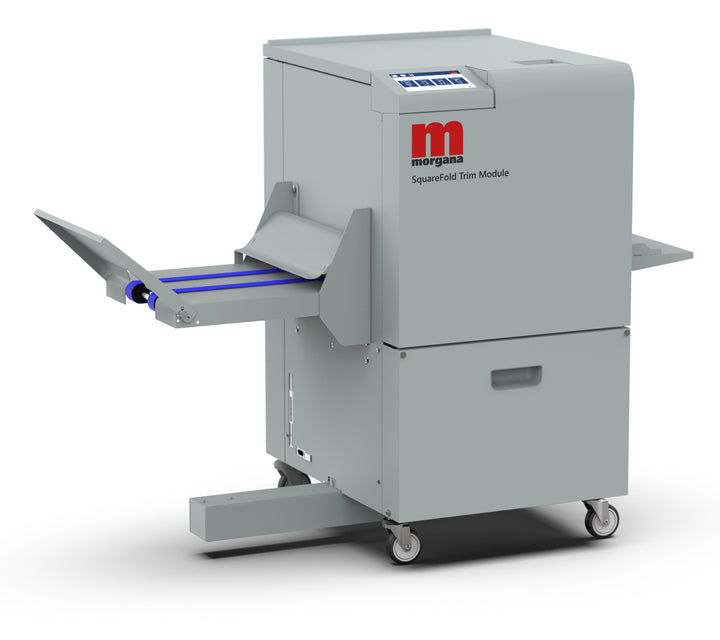

Morgana SquareFold PL104 & SFT Trimmer

Give your booklets a professional, perfect-bound lookThe SquareFold PL104 adds a square spine to stapled booklets from landscape A4 down to A6 — making thicker booklets easier to pack, stack and print on the spine. The SFT Square Fold Trimmer converts books from any booklet maker into face-trimmed, SquareBack books up to 320 x 320mm.Key considerations PL104: Up to 1,800 books/hour, 22 sheet capacity, booklets up t...

PL104: Up to 1,800 books/hour, 22 sheet capacity, booklets up to 241 x 325mm
SFT: Processes up to 50 sheets of 80gsm, from A5 through A4 landscape
SFT trimming: Operator-assisted three-side trimming for full-bleed booklets without a guillotine

Morgana BM61 Booklet Maker & AC510 Collator

Learn more Request brochure

MorganaBooklet Makers

Morgana BM61 Booklet Maker & AC510 Collator

Compact, simple, proven booklet makingThe BM61 makes booklets up to 88 pages of 80gsm, saddle stapling and folding up to 22 sheets — a market-leading entry-level machine producing up to 1,800 booklets per hour. Connect the AC510 collator for more automation.Key considerations Stapling: Saddle, side, corner and loop staple options Sheet size: 200 x 270mm to 305 x 440mm Collator: AC510/ACF510 10-station collator wit...

Stapling: Saddle, side, corner and loop staple options
Sheet size: 200 x 270mm to 305 x 440mm
Collator: AC510/ACF510 10-station collator with unique air separation — ideal for digitally printed media

Learn more Request brochure

MorganaBooklet Makers

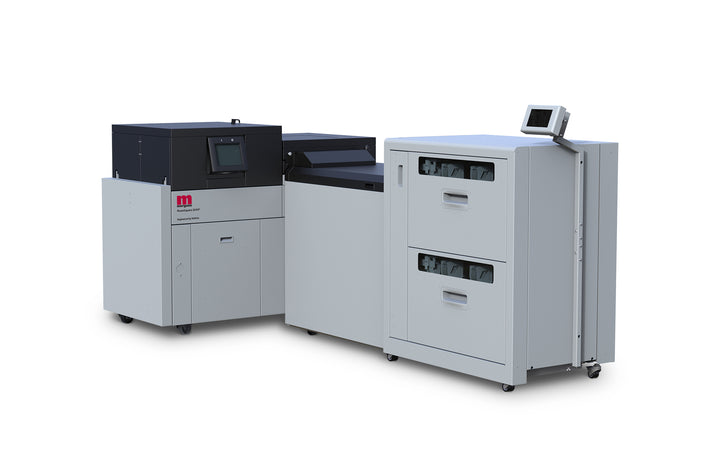

Morgana PowerSquare 224/224VF

The professional's choice for high volume SquareBack booksThe PSQ224 and PSQ224VF combine stitching, folding, spine forming and trimming in a single machine to produce SquareBack books up to 224 pages — flexibility no other booklet making system offers.Key considerations Processes: Four in one machine: stitch, fold, spine form, trim Trimming: Optional Two-Knife Trimmer (P2T) for full-bleed colour work Stacking: Po...

Processes: Four in one machine: stitch, fold, spine form, trim
Trimming: Optional Two-Knife Trimmer (P2T) for full-bleed colour work
Stacking: PowerSquare Book Stacker allows up to an hour of unattended running

Learn more Request brochure

MorganaBooklet Makers

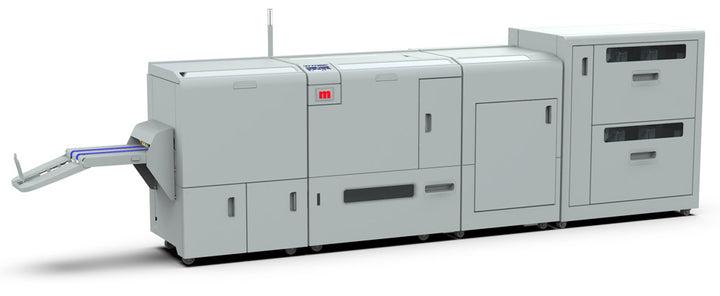

Morgana PowerSquare 7000

Production booklet making redefinedThe PowerSquare 7000 blends durability with versatile finishing, producing signature square-folded books up to A4 landscape or 320 x 320mm — with SquareFold, bleed trim and crease for a professional look.Key considerations Media range: Thick covers to lightweight papers, up to 350gsm Stitching: Robust stitch head for high-volume continuous production Book thickness: Automatically...

Media range: Thick covers to lightweight papers, up to 350gsm
Stitching: Robust stitch head for high-volume continuous production
Book thickness: Automatically adjusts for consistent quality

Learn more Request brochure

MorganaBooklet Makers

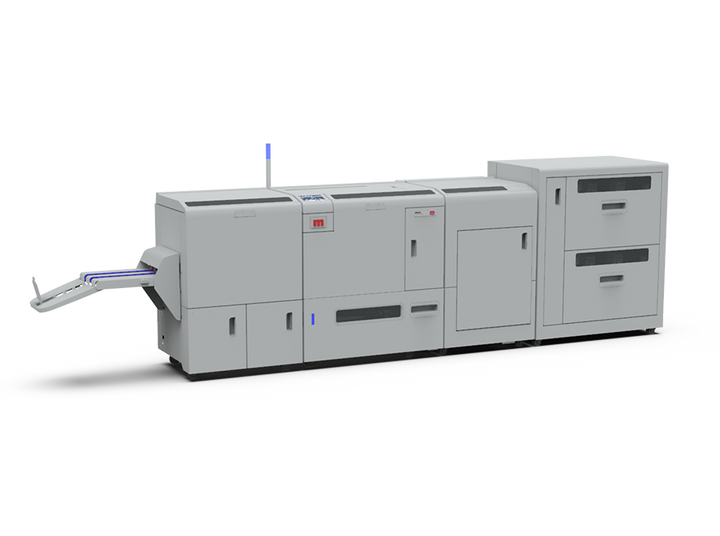

Morgana BM5000 Series Booklet Maker

Landscape format books, 2-up and moreThe BM5000 series is engineered for mid-to-high volume booklet production, delivering professionally finished books with a SquareFold spine from sheets up to 620mm long — including A4 landscape applications.Key considerations Models: BM5035/BM5050 with staple heads; BM5035S/5050S with 2 or 4 stitching heads 2-up production: Optional 4 stitching heads finish jobs imposed 2-up fo...

Models: BM5035/BM5050 with staple heads; BM5035S/5050S with 2 or 4 stitching heads
2-up production: Optional 4 stitching heads finish jobs imposed 2-up for higher productivity and lower cost...
Booklet capacity: Up to 200 pages with the 50 sheet upgrade kit

Learn more Brochure & specs

MorganaBooklet Makers

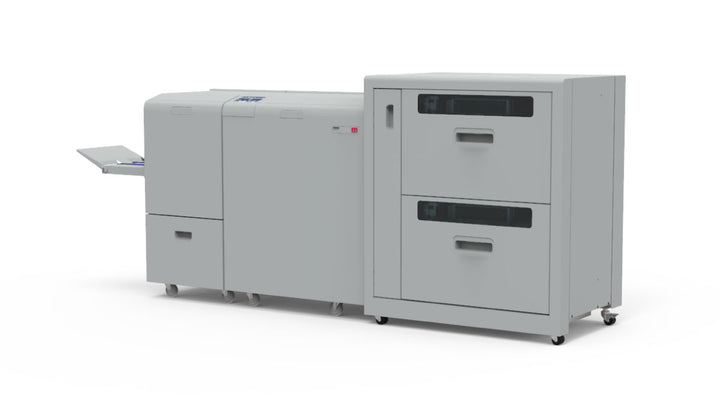

Morgana BM4000e Series Booklet Maker

Landscape format books with signature SquareFold finishThe BM4000e series produces consistently high-quality booklets on all media types, now up to 80% faster — over 1,500 A5 booklets per hour.Key considerations Booklet capacity: Up to 140 pages (BM4035e) or 200 pages (BM4050e) Formats: Square folded booklets from A6 to A4 landscape, or large format 297 x 297mm Sheet length: Up to 660mm Monthly volume: Up to 30,00...

Booklet capacity: Up to 140 pages (BM4035e) or 200 pages (BM4050e)
Formats: Square folded booklets from A6 to A4 landscape, or large format 297 x 297mm
Sheet length: Up to 660mm
