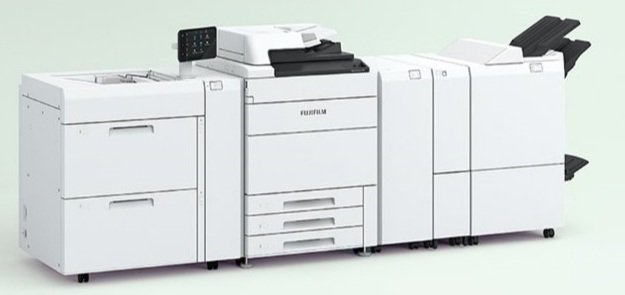

Revoria Press SC170/80

Compact and highly productive printer

Versatile media handling with the most advanced production printer features in one compact body

Stunningly high resolution printing with full office functions

A compact and highly productive printer capable of stunningly high resolution printing with full office functions. With its versatile media handling, including long and heavyweight paper, and a wide range of finishing, it is a perfect, compact printer for a wide range of applications.

Key considerations

The Revoria Press SC180 & SC170 achieves high productivity printing of 70/80ppm on both coated and uncoated paper up to 220g in weight

Heavier stocks of 300 to 400 gsm supported with high 60ppm speeds

Speed 70/80ppm

Average Monthly Print Volume 40,000 to 60,000 SRA3

52-400 gsm

The Revoria Press SC180/ SC170 Air /Suction Feeder is an offset-like feeding mechanism that adds a new level of control for light weight to heavy weight paper, small or large, even banner sized sheets of up to 1.2m.

10-bit processing results in up to 1024 halftones (instead of 256 with an 8-bit system) meaning extra control and higher quality reproduction can be achieved. In addition, graduation correction is used on images and vector graphics, faithfully reproducing fine tints, gradations of colour and subtle blends between colours. This is especially valuable when printing colour gradients, skin tones and shadows.

The VCSEL-ROS laser provides 2400 dpi print resolution while the energy-efficient EA-Eco toner* achieves superb results on either coated or uncoated paper to deliver high quality images comparable to offset printing.

In addition, the front/back registration of up to 0.5mm (0.8mm from standard trays) ensures high quality duplex printing.

* Emulsion Aggregation-Eco Toner

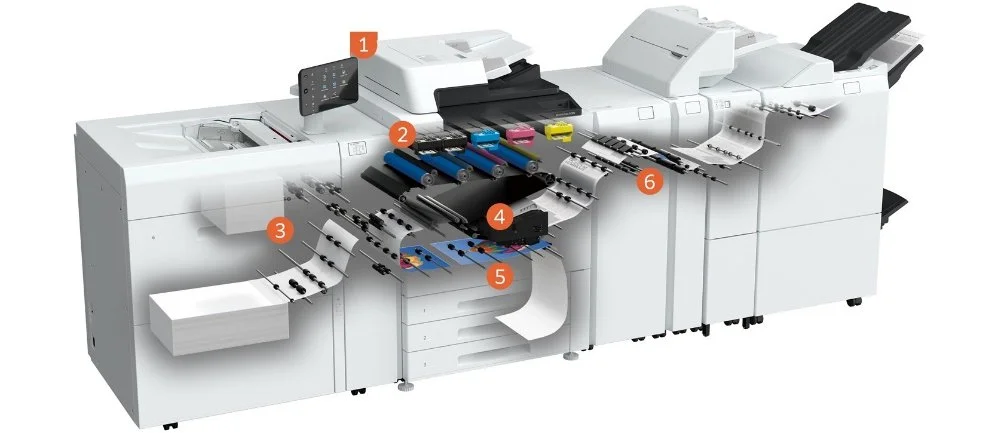

1. Automatic Document Feeder

Single Pass DADF achieves speedy copy and scan. Exerts productivity of 80 ppm for copy, 135 ppm (1 sided) for scan, and 270 ppm for 1 pass 2 sided scanning.

2. VCSEL-ROS / EA-Eco toner*9

The VCSEL-ROS provides 2,400 dpi print resolution while the energy-efficient EA-Eco toner* achieves synergistic effect with toner volume control based on coated/uncoated paper to deliver high-quality images comparable to offset printing.

* Emulsion Aggregation-Eco Toner.

3. Air Suction Mechanism / Multifeed Detection Device

The Air Suction Feeder* is installed with our proprietary air suction mechanism to stabilise various paper for high speed feed.

The Multifeed Detection Device detects multiple feeding and ensures documents are printed accurately.

* Optional.

4. Compact Belt Roll Fuser

The compact belt roll fuser provides the uniform heat and pressure needed to fuse images onto a wide variety of paper stocks including heavyweight.

5. Built-in Twin Decurler

This machine corrects paper curl, which can negatively affect stable transfer. The amount of correction can be adjusted to match the size and orientation of any type of paper curl.

6. Real Time Curl Correction

Adjust the amount of curl in printouts by installing the optional Interface Decurler Module D1.
